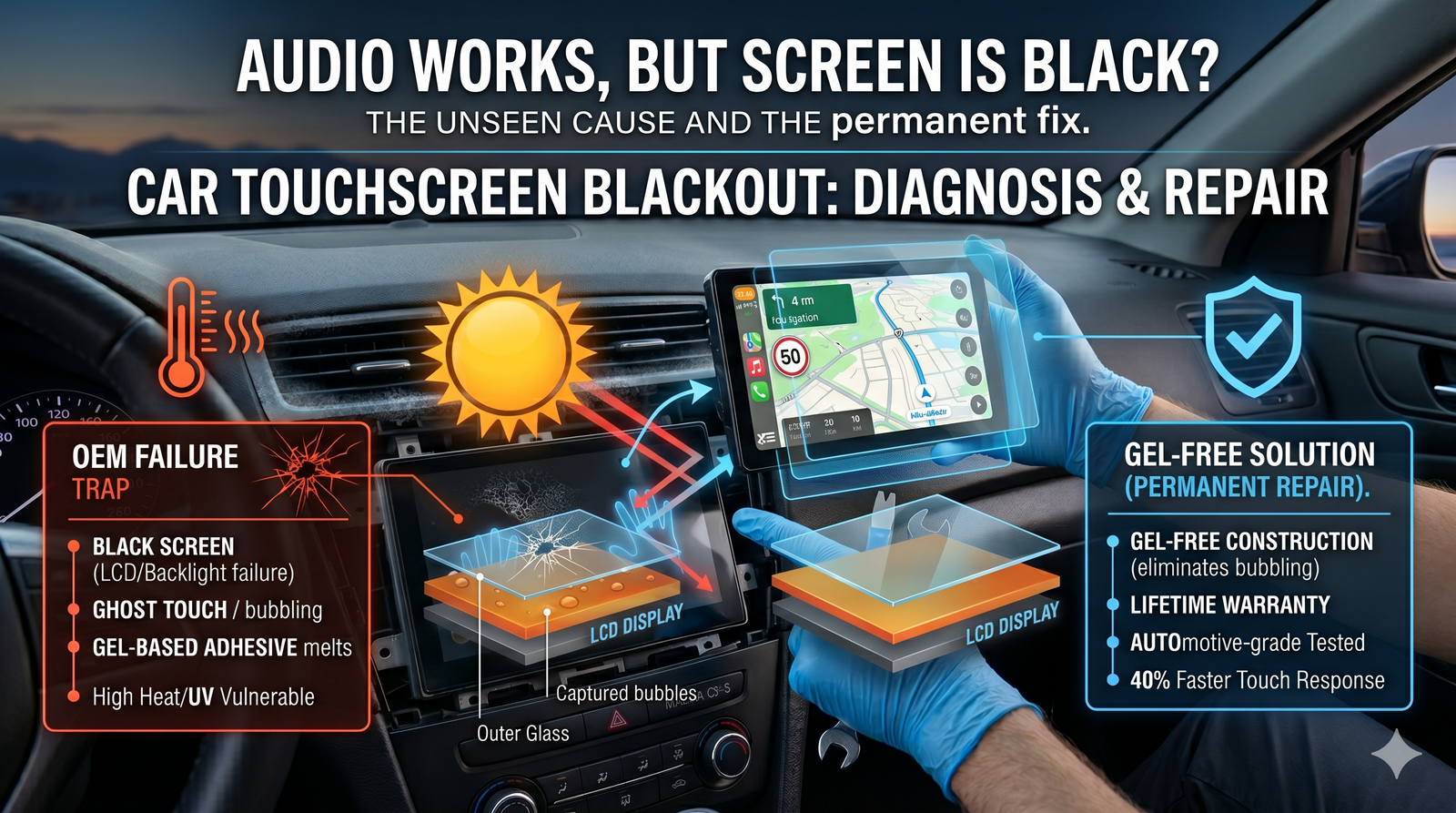

Why Your Radio Plays Music When the Display Is Completely Black

The Short Answer: Your Audio and Display Are Separate Systems

Your infotainment head unit contains multiple independent subsystems. The audio processor, radio tuner, Bluetooth module, and display are all housed in the same unit — but they don’t all fail together.

When your screen goes black but music keeps playing, it means one thing: the display component has failed while the rest of the system is still running normally. The head unit itself is fine. The part that shows you what’s happening is not.

This is important because it means you almost certainly do not need to replace your entire head unit. You need to replace the display.

What Actually Causes the Black Screen

There are four common causes, and they’re all display-side failures.

1. LCD Panel Failure

The LCD panel is the layer that produces the actual image. Over time — and especially in vehicles parked in direct sun — heat degrades the liquid crystal layer and the polarizing films that make the display work. When it fails, the backlight may still function but produce no visible image, or the panel goes fully dark.

This is extremely common in vehicles that sit in hot climates or direct sunlight for extended periods. It’s not a defect. It’s a wear pattern that affects every screen eventually, and OEM screens are particularly susceptible because of the gel-based adhesive used in factory construction.

2. Digitizer Failure

The digitizer is the transparent touch layer that sits on top of the LCD. In many infotainment units, the digitizer and LCD are bonded together as a single assembly. When the digitizer fails — from delamination, cracking, moisture intrusion, or the gel layer breaking down — it can take the display with it even if the LCD itself is still functional.

This is the most common failure mode in Hyundai and Kia infotainment systems. The factory gel bonding breaks down under heat cycles, causing separation, bubbling, and eventually full display failure while the rest of the unit keeps running.

3. Backlight Failure

The backlight is what makes the LCD visible. If the backlight fails, the display goes black even though the LCD and digitizer may be perfectly intact. In some cases, you can confirm this by shining a flashlight directly at the screen at an angle — if you can faintly see an image, the backlight has failed but the display itself is still working.

Backlight failure is less common than LCD or digitizer failure but follows the same repair path: the display assembly needs to be replaced.

4. Ribbon Cable Connection

The display connects to the head unit via a ribbon cable. Vibration, heat expansion, and physical stress can cause this connection to loosen or fail. A disconnected ribbon cable produces a black screen while the rest of the unit operates normally — because the head unit is still running, just not communicating with the display.

This is worth checking before replacing anything. If the ribbon cable has simply worked itself loose, reseating it may restore the display without any parts replacement at all.

What It Is Not

Worth being direct here, because dealerships sometimes frame this differently.

A black screen with working audio is almost never a head unit failure. The head unit — the brain of the system — is still running. It’s processing audio, maintaining Bluetooth connections, and managing system functions. If the head unit had failed, you would not have audio either.

It is also not a fuse issue in most cases. A blown fuse typically takes out an entire circuit. If audio is working, power is reaching the unit.

And it is not a reason to replace the entire infotainment system. That is a $1,500–$3,000 repair at a dealership for a problem that almost always has a $199 fix.

How to Confirm It’s a Display Failure

Before ordering anything, run through these quick checks.

Check for touch response

With the car running and the screen black, tap where you know controls should be — the volume area, a preset station, the home button. If the system responds (volume changes, station switches, audio changes), the digitizer or LCD has failed but the head unit is fully functional. This confirms a display-side repair is all you need.

Flashlight test for backlight

Shine a bright flashlight at a sharp angle against the screen surface in a dark environment. If you can see a faint image, the LCD is working but the backlight has failed. Same repair path either way, but useful to know.

Check for recent physical damage

A crack, impact, or anything pressed hard against the screen can cause immediate display failure. If the screen was fine and then went black after something made contact with it, the digitizer or LCD has been physically damaged.

Check for recent heat exposure

Did the screen fail during or after an extended period of intense heat — a summer afternoon, a long drive in direct sun? Heat-related LCD failure often presents as a sudden blackout. The screen may briefly flicker before going dark, or may simply fail to come on one morning.

The Fix: Replace the Display Assembly

For Hyundai and Kia vehicles using the 8” TDO-0797F00136 V3 infotainment system, the repair is replacing the LCD and digitizer assembly. This is a single part that covers all display-side failures — whether the cause was the LCD panel, the digitizer, or the backlight.

You do not need to replace the head unit. You do not need dealership programming. The replacement is a direct plug-in fit.

What the repair involves

• Removing the trim panel around the infotainment screen
• Disconnecting the ribbon cable and any other connectors
• Removing the failed display assembly
• Installing the replacement and reconnecting
• Reassembling the trim panel

Most customers complete this in under an hour using basic tools. No soldering, no programming, no dealership visit required.

Why the replacement screen matters

If your original screen failed from heat-related delamination — which is the most common cause in Hyundai and Kia vehicles — installing another gel-bonded screen means the same failure will happen again. Cuescreens uses gel-free construction specifically to eliminate this failure mode. The replacement won’t develop the same bubbling and delamination pattern that caused the original failure.

It also uses the NanoTouch™ Ultra-Responsive Chip, which delivers 40% faster touch response than OEM and stronger resistance to heat and humidity — the conditions that caused the original failure in the first place.

Cost Comparison

The dealership repair is expensive because it replaces far more than what’s broken. The cheap digitizer is inexpensive because it skips the testing and materials that make a screen last. The Cuescreens replacement targets exactly what failed, with the build quality to make sure it doesn’t fail again.

Compatible Hyundai & Kia Models

The Cuescreens 8” replacement display is compatible with the following vehicles using the TDO-0797F00136 V3 infotainment system:

Hyundai (2020–2025)

• Hyundai Verna (2020–2023)
• Hyundai Solaris (2020–2023)
• Hyundai Tucson (2021)
• Hyundai IONIQ (2021)
• Hyundai Accent (2021)
• Hyundai Kona EV (2021)
• Hyundai Palisade (2021)
• Hyundai Santa Fe (2021)
• Hyundai Santa Cruz (2021–2024)
• Hyundai Venue (2024–2025)

Kia (2021–2025)

• Kia Carens (2021)
• Kia Seltos (2021–2022)
• Kia Sorento (2021–2025)
• Kia Sportage (2021)
• Kia Picanto (2022)
• Kia Sonet (2023)
• Kia Stonic (2023)
• Kia Rio (2023–2025)
• Kia Carnival (2025)

Confirm your original screen size before ordering. This is the 8” model. Verify your OEM part number is TDO-0797F00136 V3.

Bottom Line

Audio working with a black screen is not a mystery. The display failed. The rest of the system is fine. You don’t need a new head unit, you don’t need a dealership, and you don’t need to spend $3,000.

You need a replacement display that won’t fail the same way again. That’s what Cuescreens builds.

Frequently Asked Questions

Why does my car radio play music but the screen is black?

The audio and display systems in your infotainment unit are separate. When the screen goes black but audio continues, it almost always means the LCD or digitizer has failed — not the head unit. The radio, Bluetooth, and audio processing components are still running normally.

Do I need to replace the entire head unit if my screen is black?

In most cases, no. A black screen with working audio is a display component failure, not a head unit failure. Replacing just the LCD and digitizer restores full functionality for a fraction of the cost of replacing the entire unit.

What causes a car touchscreen to go completely black?

The most common causes are LCD failure from heat or age, digitizer failure from delamination or physical damage, a failed backlight, or a loose ribbon cable connection. All of these affect the display independently from the audio system.

Can I fix a black car screen myself?

Yes. Replacing an infotainment screen digitizer is a DIY-friendly repair for most Hyundai and Kia models. Most customers complete the installation in under an hour using basic tools, with no dealership programming required.

How much does it cost to fix a black infotainment screen?

A quality replacement digitizer for Hyundai and Kia models costs around $199 from Cuescreens. Dealerships typically quote $1,500–$3,000 to replace the entire head unit, which is rarely necessary when only the display has failed.
