How to Identify the 50-Pin Mazda 6 Touchscreen Digitizer (GRT7611J0)

If your Mazda 6 touchscreen has started cracking, ghost touching, or ignoring your input entirely, the fix is almost always the digitizer, not the LCD or the radio itself. But before you order a replacement, you need to know which version your Mazda 6 actually has. Mazda used two different ribbon cable connectors across the 2015 to 2019 model years, and they are not interchangeable. This guide focuses on the 50-pin version, GRT7611J0, so you can confirm your Mazda 6 uses this connector before placing an order.

Why There Are Two Different Digitizers for the Same Car

Mazda changed the internal electronics of the 7-inch Mazda Connect touchscreen partway through this model's production run. Earlier units used a 36-pin ribbon cable connector, part number GML8611J0. Later production runs moved to a higher-density 50-pin ribbon cable connector, part number GRT7611J0, along with its GRT7611J0A and GRT7611J0B revisions. The glass, the sensor grid, and the connector pin count are all different between the two versions, so a 36-pin digitizer will not physically connect to a 50-pin wiring harness, and the reverse is also true.

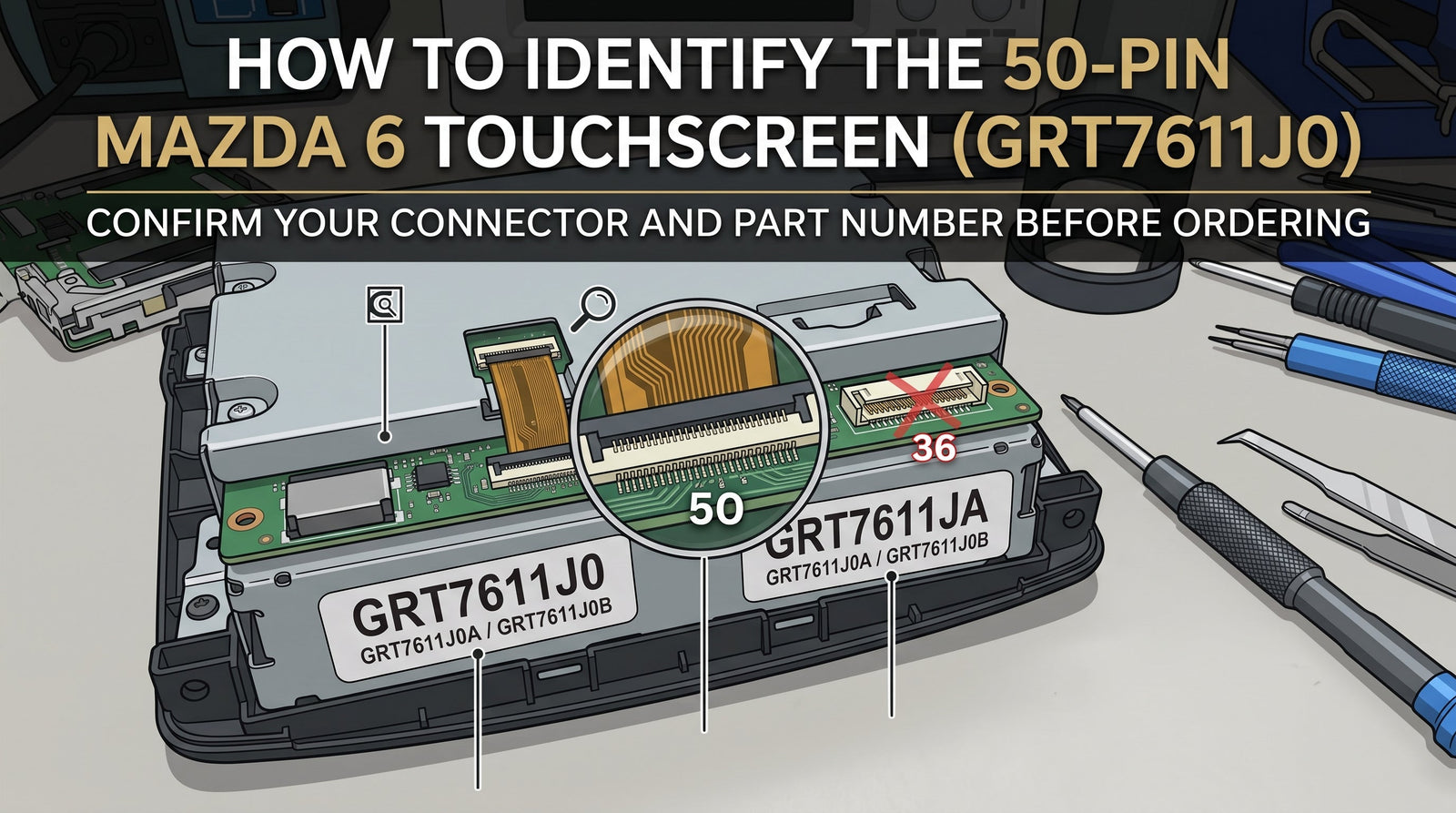

How to Tell If You Have the 50-Pin Version

The most reliable way to confirm your connector type is to pull the radio and look directly at the part. Here is what to check:

• OEM part number decal: Once the radio is out, look at the identification decal on the rear structural casing. If it reads GRT7611J0, GRT7611J0A, or GRT7611J0B, you have the 50-pin version.
• Ribbon cable width: The 50-pin connector is visibly wider and denser than the 36-pin connector. If you are comparing the two side by side, the difference in contact count is easy to see.
• Production timing: Owners and parts catalogs generally associate the 50-pin connector with later production Mazda 6 units, while the 36-pin connector shows up on earlier ones. Production timing is a useful hint, but the part number on the unit itself is the detail to rely on before ordering, since running changes do not always line up neatly with a specific model year.

If you already have your original screen out of the dash, checking the stamped part number directly is the fastest way to confirm which version you need. If you have not removed the radio yet, note that a full removal is required to see the decal or the ribbon cable, so budget time for that step before you can confirm your connector type with certainty.

What the 50-Pin Replacement Includes

The Cuescreens 50-pin Mazda 6 digitizer is the touchscreen glass digitizer only. It does not include the LCD, radio, or full display assembly, and your existing LCD is reused. This keeps the repair focused on the part that actually fails in most cases: the digitizer, the layer that reads your finger, rather than the LCD, which usually still works fine.

Common Failure Signs on This Platform

Whether you have the 36-pin or 50-pin version, the digitizer tends to fail in similar ways: cracked or shattered glass, ghost touch where the screen registers input on its own, dead zones that stop responding, and a worn or hazy touch surface. If you are seeing any of these and you have confirmed your connector is the 50-pin GRT7611J0 version, replacing the digitizer alone is typically enough to restore full function without paying for a complete display assembly.

Ordering the Correct Part

Once you have confirmed the GRT7611J0 part number or the 50-pin ribbon cable on your existing screen, order the matching 50-pin version of the replacement digitizer. Ordering by model year alone is not reliable on this platform, since Mazda's running changes do not map cleanly to specific years across every trim, so always confirm against the part number or ribbon cable rather than the year alone.
