Why Your New Replacement Screen Already Has Dead Spots

Dead Spots on a New Screen Are Not Always a Bad Part

The instinct when a new replacement screen has dead zones is to blame the part. Sometimes that is correct. But the majority of dead spot complaints after a DIY installation come down to one of a handful of installation or fitment issues that have nothing to do with the screen being defective.

Working through these systematically before requesting a replacement or giving up will save you time and, in most cases, solve the problem.

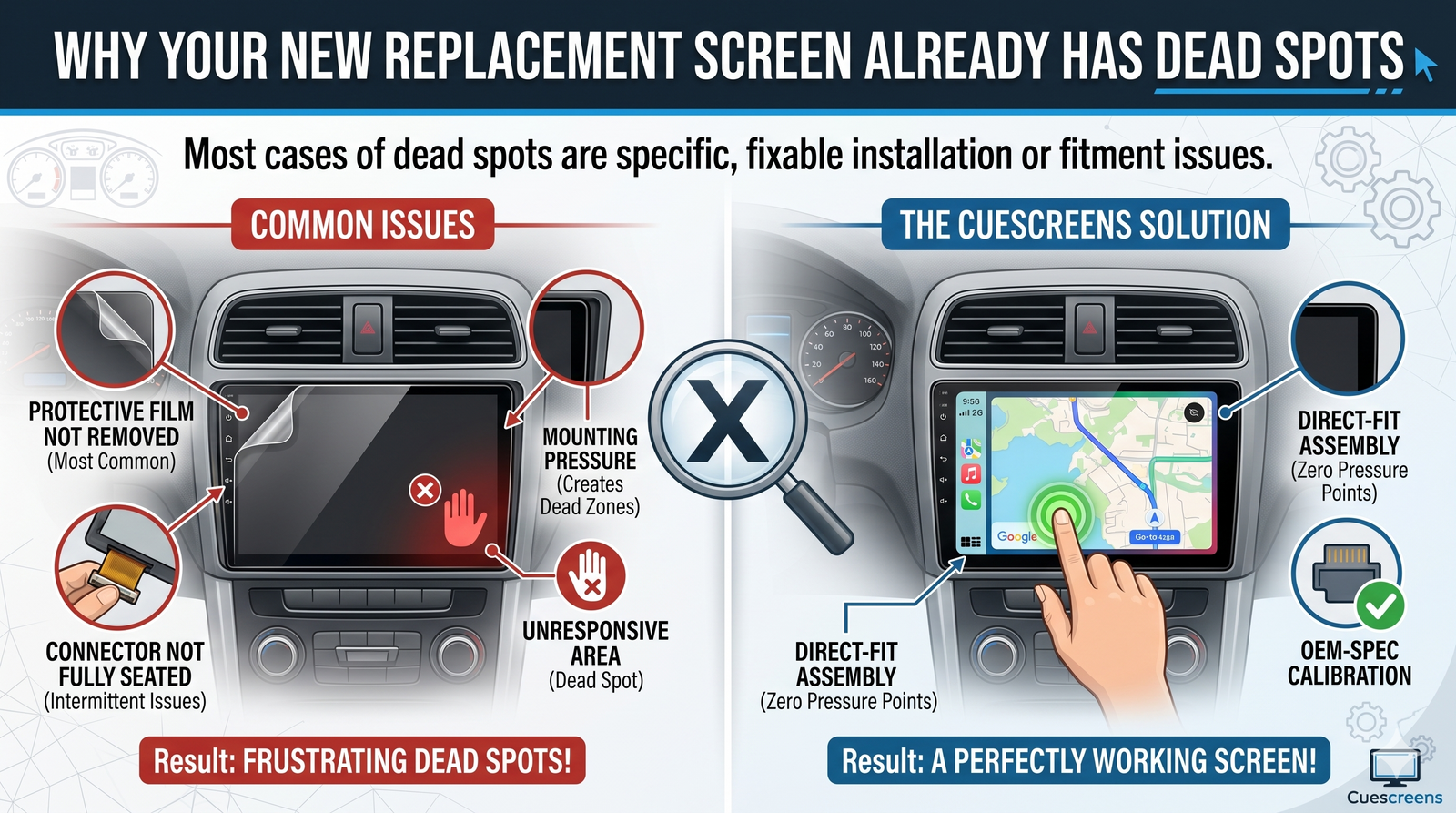

The Protective Film Was Not Removed

This is the most common and most embarrassing cause, which is why it is worth mentioning first. Many replacement screens ship with a thin plastic film applied to the digitizer surface to protect it during shipping. It can be nearly invisible, especially once the screen is installed inside a dark dash cavity.

If the film was not peeled before installation, it sits between your finger and the digitizer and can significantly reduce or eliminate touch response in some areas. Remove the screen, inspect the front surface carefully under good lighting, and peel any film that is present before reinstalling.

Mounting Pressure Is Pressing on the Digitizer

The digitizer is sensitive to pressure applied to its surface from behind as well as from the front. If a mounting clip, bracket edge, or any part of the bezel is making contact with the screen surface rather than the frame around it, it creates a constant pressure point that the digitizer interprets as interference. The result is a dead zone in exactly that location.

Dead spots caused by mounting pressure tend to appear near the edges or corners of the screen where the frame and mounting hardware sit closest to the active display area. To test for this, remove the screen from the dash entirely, hold it loosely in front of the opening with the connectors still attached, and test touch response. If the dead spots disappear when the screen is not mounted, installation pressure is the cause.

A Connector Is Not Fully Seated

The digitizer and display panel each have their own connector running to the head unit. A connector that looks inserted but is not fully locked can cause intermittent touch failures, localized dead zones, or areas of reduced sensitivity.

The tell with a connector issue is that dead spots from a bad connection tend to be less fixed than dead spots from pressure or a bad digitizer. They may shift slightly, improve after the vehicle warms up, or temporarily change if you press near the connector area. Power down the screen completely, disconnect and firmly reseat each connector, and make sure any locking tabs click into place before reinstalling.

The Replacement Is Not the Correct Fit

Not every screen that physically fits in the opening is a true direct fit. A replacement that is slightly off in its dimensions or mounting geometry can sit unevenly inside the dash, creating warping or uneven pressure across the digitizer surface. This is especially common with universal-fit or non-vehicle-specific replacements sold at low price points.

If the replacement screen required any creative trimming, bending, or forced fitting to install, or if it sits noticeably differently in the dash than the original did, fitment is a likely contributor to the dead spots.

Direct-fit, vehicle-specific replacement assemblies are designed to the exact dimensions and mounting points of the factory screen. They sit the same way the original did and distribute mounting pressure the same way the original did, which is why they produce more consistent touch performance after installation.

The Replacement Unit Has a Substandard Digitizer

If you have ruled out the film, mounting pressure, and connector seating and the dead spots are still there, the issue is the part itself. Not all replacement screens are manufactured to the same specifications as the original. Low-cost replacements frequently use digitizer panels that do not match the original touch sensitivity calibration, active area dimensions, or resolution of the factory component.

The result can be dead zones near the edges of the screen where the active sensing area of the aftermarket digitizer falls short of the display area, inconsistent sensitivity across the surface, or touch points that register in the wrong location.

OEM-quality replacements are built to match the original specifications. The digitizer active area, sensitivity, and connector placement correspond to what the vehicle's head unit expects, which is why touch performance holds up across the full screen surface.

How to Test Before You Fully Reassemble

The single most useful habit when installing a replacement screen is to test it before snapping everything back together. With all connectors attached and the screen powered on, hold it loosely in position without any mounting pressure applied and run your finger across the entire surface in a grid pattern. If touch registers everywhere at this stage, you can install with confidence knowing any dead spots that appear after mounting are pressure-related. If dead spots are present before mounting pressure is applied, the replacement unit has a problem.

This test takes about two minutes and can save a significant amount of disassembly time later.

Getting the Right Replacement the First Time

The fastest path to a screen that works correctly from the first install is a direct-fit OEM-quality replacement built for your specific vehicle. Cuescreens carries replacement touchscreen assemblies for GM and Chevy, Cadillac, Jeep, RAM, Chrysler, Subaru, Mazda, Hyundai, Kia, Honda, Acura, Volkswagen, and Buick vehicles. Each assembly includes the digitizer and display panel pre-bonded at the factory and is built to the fitment and specifications of the original.

Frequently Asked Questions

Why does my brand new car touchscreen have dead spots?

The most common causes are a digitizer that is not the correct fit for your vehicle, pressure from mounting hardware or clips pressing against the screen surface, a connector that is not fully seated, or a low-quality replacement that did not meet the original digitizer specifications. In some cases, a protective film left on the digitizer during installation can also interfere with touch sensitivity.

Can incorrect installation cause dead spots on a car touchscreen?

Yes. If the mounting clips or bezel are pressing unevenly against the screen, that physical pressure can create areas where the digitizer cannot register touch accurately. Dead spots caused by installation pressure often appear near the edges or corners of the screen where the frame makes contact.

Does a wrong-fit replacement screen cause dead spots?

It can. A replacement that is close in size but not an exact fit for your vehicle may sit unevenly in the dash, creating pressure points or gaps that affect digitizer performance. This is one reason direct-fit, vehicle-specific replacement assemblies produce more reliable results than universal or approximate-fit screens.

How do I know if my replacement screen's connector is causing the dead spots?

A partially seated connector often produces intermittent touch failures rather than fixed dead zones. If your dead spots move around, disappear after the vehicle warms up, or temporarily improve after pressing near the connector area, a loose or improperly seated connection is a likely cause. Power down the screen completely, reseat the connector, and ensure the locking tab is fully engaged.

What is the difference between a cheap replacement screen and an OEM-quality one?

Low-cost replacement screens often use digitizer panels that do not match the original touch sensitivity specifications, resolution, or active area dimensions of the factory screen. This can result in dead zones, inconsistent touch response, or areas near the edges that do not register input. OEM-quality replacements are built to match the original specifications so the digitizer performs the same way the factory screen did.
