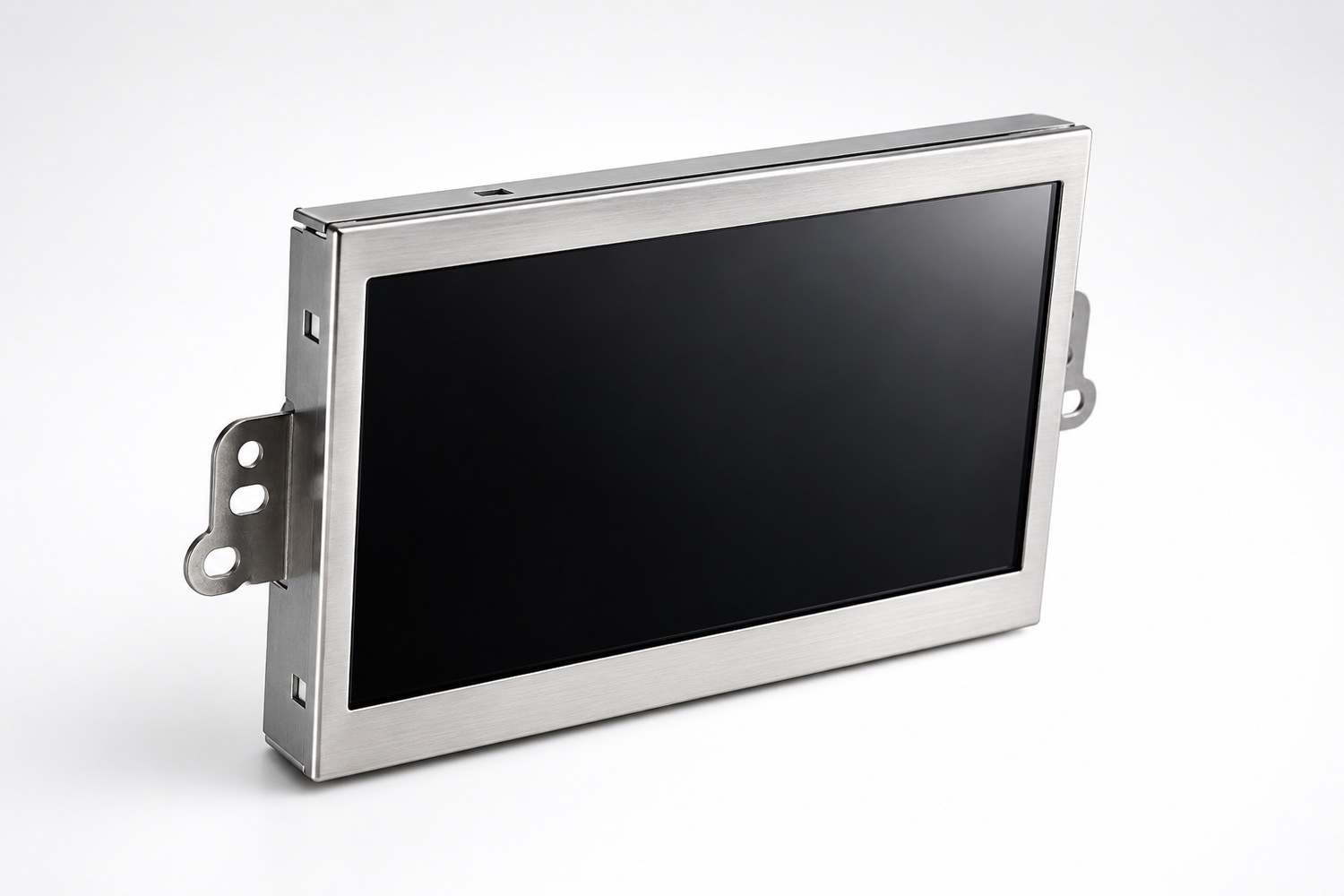

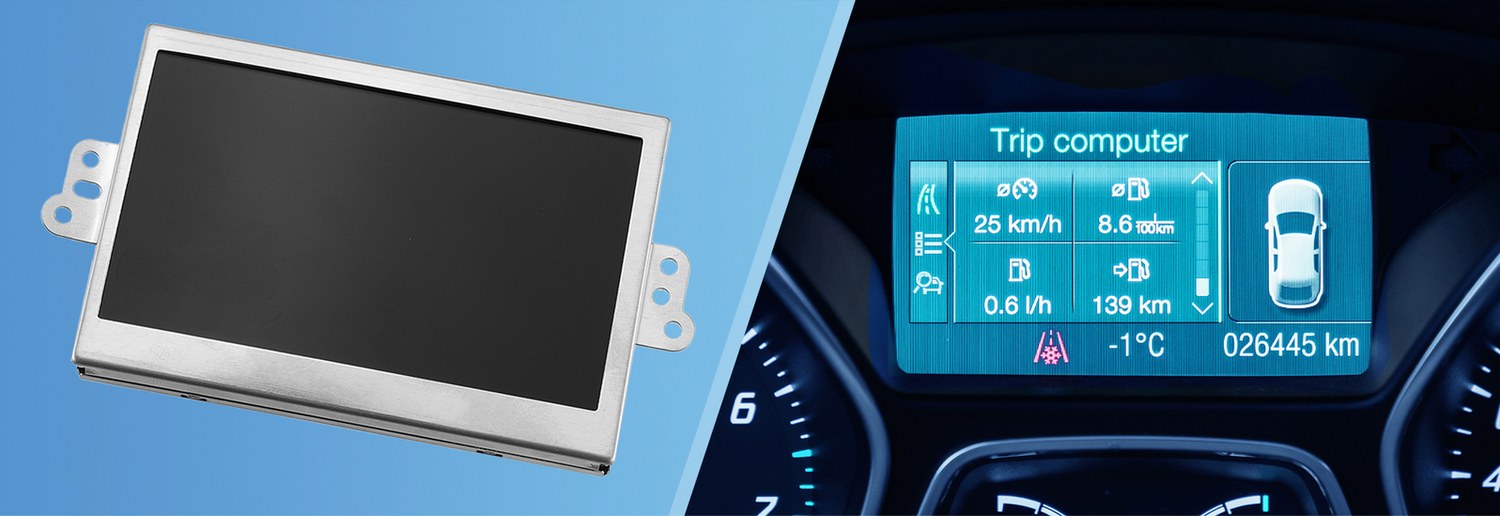

2013–2016 Ford Focus / Escape & 2012–2014 Ford Edge Instrument Cluster LCD Screen – 140 MPH Speedometer

Restore the instrument cluster display in your Ford without replacing the entire speedometer assembly. This replacement LCD screen is designed for select Ford Focus, Ford Escape, and Ford Edge instrument clusters equipped with the 140 MPH speedometer.

If your factory cluster screen is blank, faded, distorted, pixelated, flickering, washed out, or difficult to read, this LCD allows you to repair the original instrument cluster instead of purchasing and programming a complete replacement cluster.

This is the LCD screen only. It is not a complete instrument cluster, speedometer assembly, gauge face, circuit board, housing, or programming service.

Important Fitment Notice

This screen is for the 140 MPH speedometer version only. It does not fit the 150 MPH cluster. Ford used more than one instrument cluster LCD configuration during these years, and the screens are not interchangeable.

Before ordering, confirm that your speedometer face goes to 140 MPH and compare your original LCD screen, connector, ribbon location, and mounting bracket style.

If you are unsure whether your vehicle has the 140 MPH or 150 MPH cluster, send us a clear photo of your instrument cluster and the original LCD label before ordering.

Vehicle Compatibility

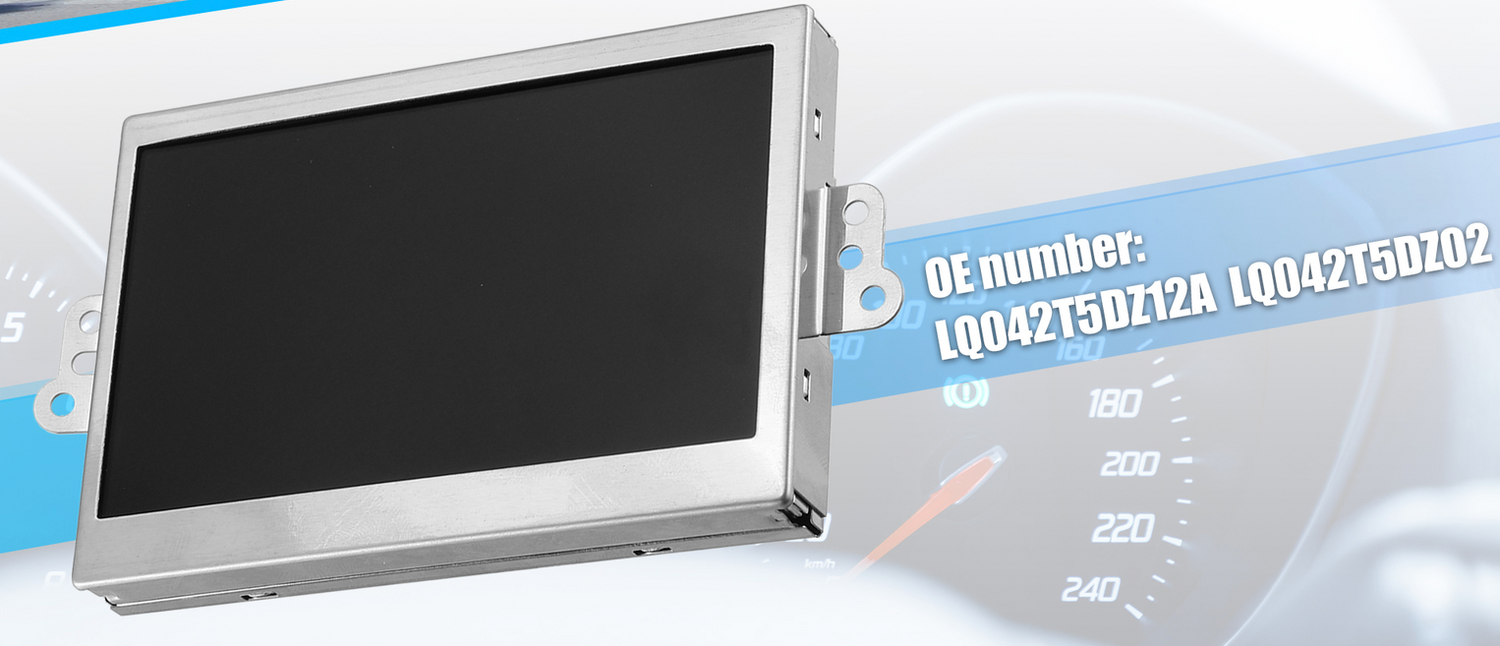

Replaces / Cross-Reference Numbers

• LQ042T5DZ12A
• LQ042T5DZ02

Part numbers can vary by supplier and production run. The most important fitment checks are the vehicle model, year, 140 MPH speedometer face, connector style, and original LCD mounting bracket configuration.

Common Symptoms This Screen May Repair

• Blank or black instrument cluster LCD
• Faded or dim display
• Missing pixels or broken-looking text
• Horizontal or vertical lines through the display
• Flickering cluster screen
• Washed-out or distorted screen image
• Display that is hard to read in normal driving conditions

What This Part Will Not Repair

This LCD screen will not correct issues caused by a failed cluster circuit board, damaged connector, water damage, power loss, BCM fault, CAN communication issue, programming issue, odometer issue, or a physically incompatible instrument cluster.

Why Buy From Cuescreens?

Cuescreens specializes in automotive display replacement parts, not generic electronics. Instrument cluster LCD fitment is very specific. Two screens can look similar at first glance but still be incompatible because of a different connector, bracket, ribbon orientation, resolution, or speedometer configuration.

This listing is clearly identified as the 140 MPH cluster version to help prevent one of the most common ordering mistakes on these Ford clusters. If there is any doubt, contact us before ordering so we can help verify the correct screen.

Product Details

• Product: Instrument Cluster LCD Display Screen
• Screen Type: Color TFT LCD Module
• Screen Size: 4.2 inch

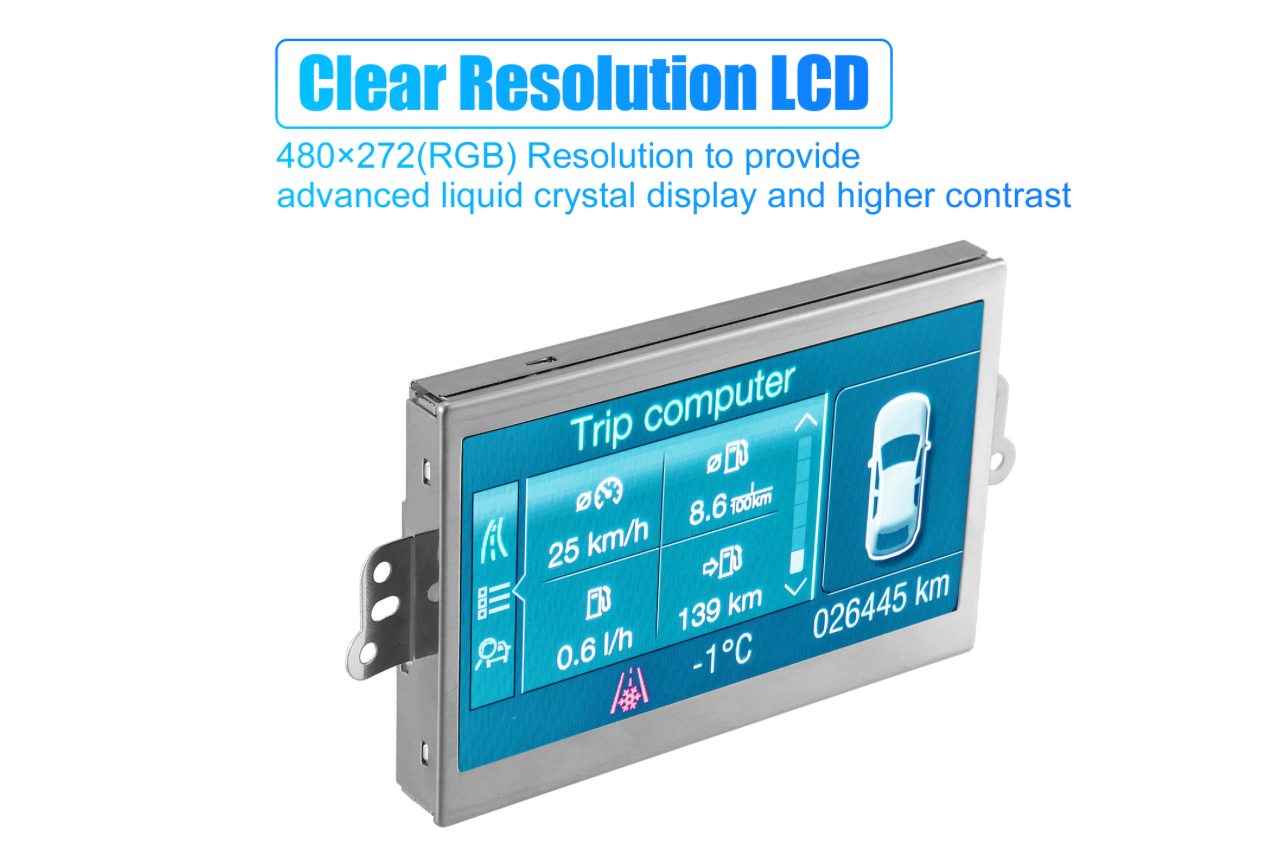

• Resolution: 480 x 272 RGB / WQVGA
• Interface: 50-pin CMOS, 1-channel, 6-bit
• Panel Type: a-Si TFT-LCD
• Typical Brightness: 500 cd/m²
• Material: Metal and glass
• Color: Silver tone and black

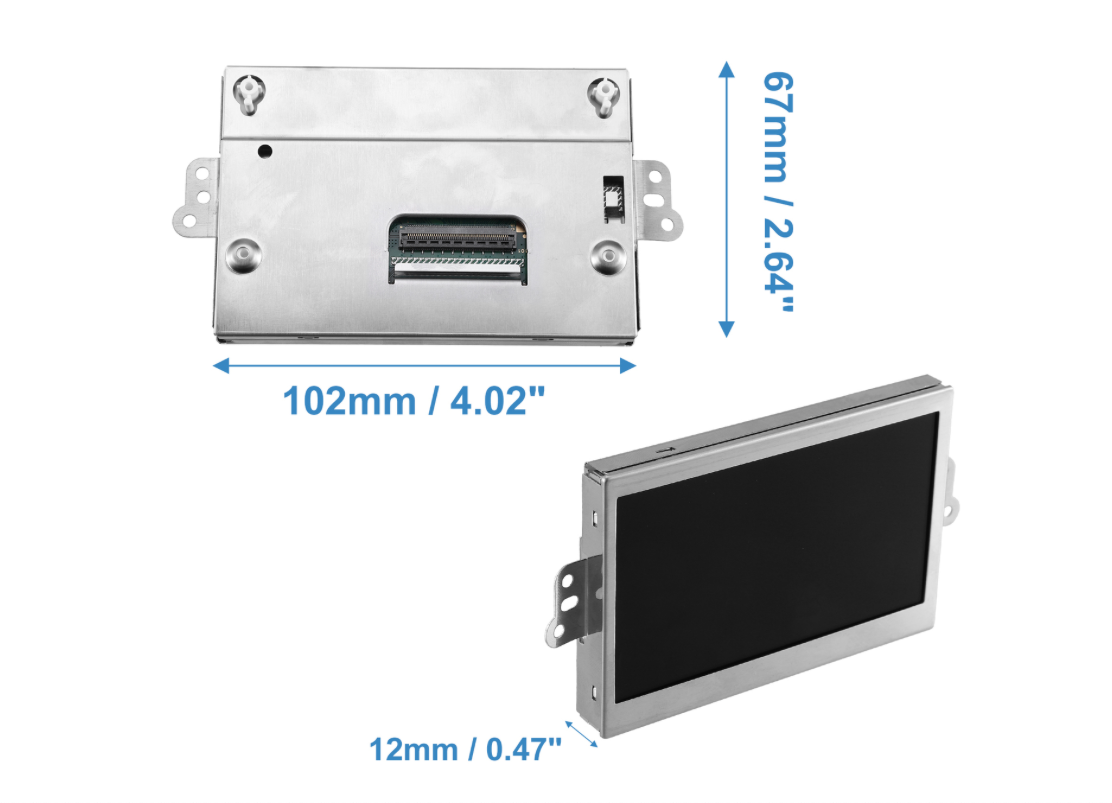

• Dimensions: Approximately 4.02" x 2.64" x 0.47"
• Metric Dimensions: 102 x 67 x 12 mm
• Weight: Approximately 4.13 oz / 0.26 lb
• Metric Weight: 117 g
• Placement: Front instrument cluster display
• Fitment Type: Direct replacement for compatible 140 MPH clusters

Package Includes

• 1 replacement LCD display screen

Installation Notes

Professional installation is recommended. The instrument cluster must be removed and opened to replace the LCD screen. Always disconnect the vehicle battery before service, handle the ribbon connector carefully, avoid flexing or creasing the ribbon cable, and confirm the screen is fully seated before reassembling the cluster.

Search for a professional installation video using terms such as “Ford Focus instrument cluster LCD replacement,” “Ford Escape cluster LCD screen replacement,” or “Ford Edge speedometer LCD replacement” to better understand the process before installation.

Fitment Verification Checklist

• Confirm your vehicle is a listed Ford Focus, Escape, or Edge model year.
• Confirm your speedometer face goes to 140 MPH, not 150 MPH.

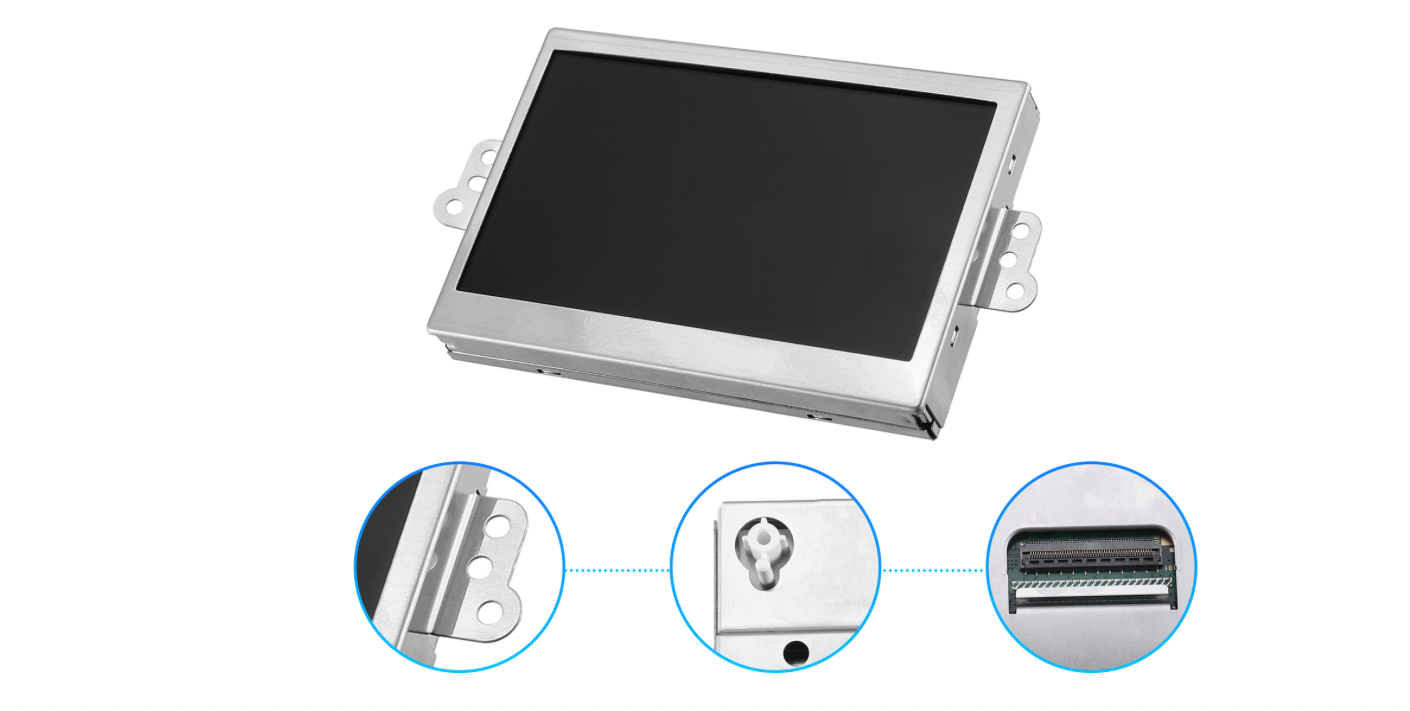

• Compare your original LCD connector and bracket style.
• Check whether your original screen references LQ042T5DZ12A or LQ042T5DZ02, if the label is visible.
• Confirm you are replacing the LCD screen only, not the complete instrument cluster.

Frequently Asked Questions

Will this fit my 150 MPH Ford cluster?

No. This screen is only for the 140 MPH speedometer cluster. It is not compatible with the 150 MPH version.

Is this a complete instrument cluster?

No. This listing is for the replacement LCD display screen only. It does not include the full cluster, gauge face, housing, circuit board, or programming.

Will this fix a blank or faded cluster display?

In many cases, yes. This screen is intended to repair common LCD-related failures such as blank display, fading, missing pixels, lines, flickering, and distortion. It will not fix power, circuit board, wiring, BCM, or programming issues.

Do I need to program this LCD screen?

The LCD screen itself does not require vehicle programming. However, installation requires opening the instrument cluster and properly connecting the replacement screen.

How do I know if I have the 140 MPH version?

Look at the maximum number on your speedometer face. If your speedometer goes to 140 MPH, this may be the correct version. If it goes to 150 MPH, this screen is not correct.

Can I install this myself?

Some experienced DIY customers can complete this repair, but professional installation is recommended. The cluster must be opened carefully, and the LCD ribbon connection must be handled correctly to avoid installation damage.

What should I do if I am unsure about compatibility?

Send Cuescreens a clear photo of your instrument cluster and the original LCD label before ordering. We would rather help verify fitment before shipment than have you receive the wrong screen.
