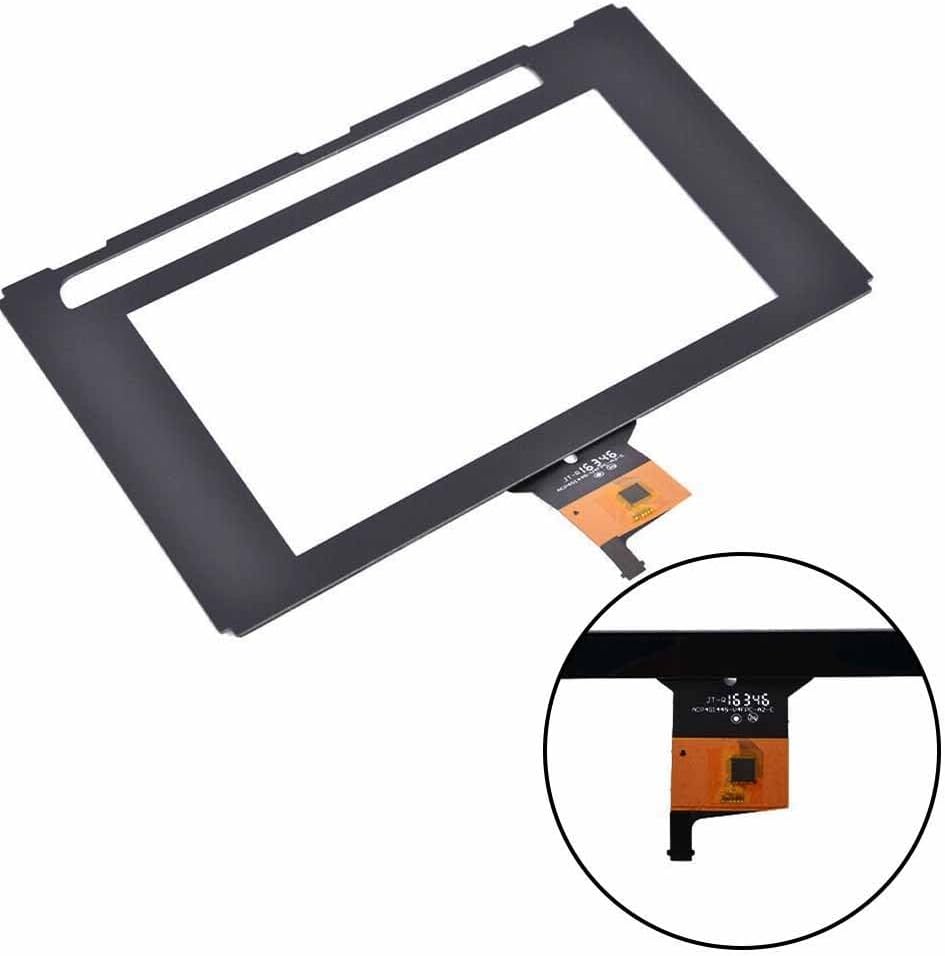

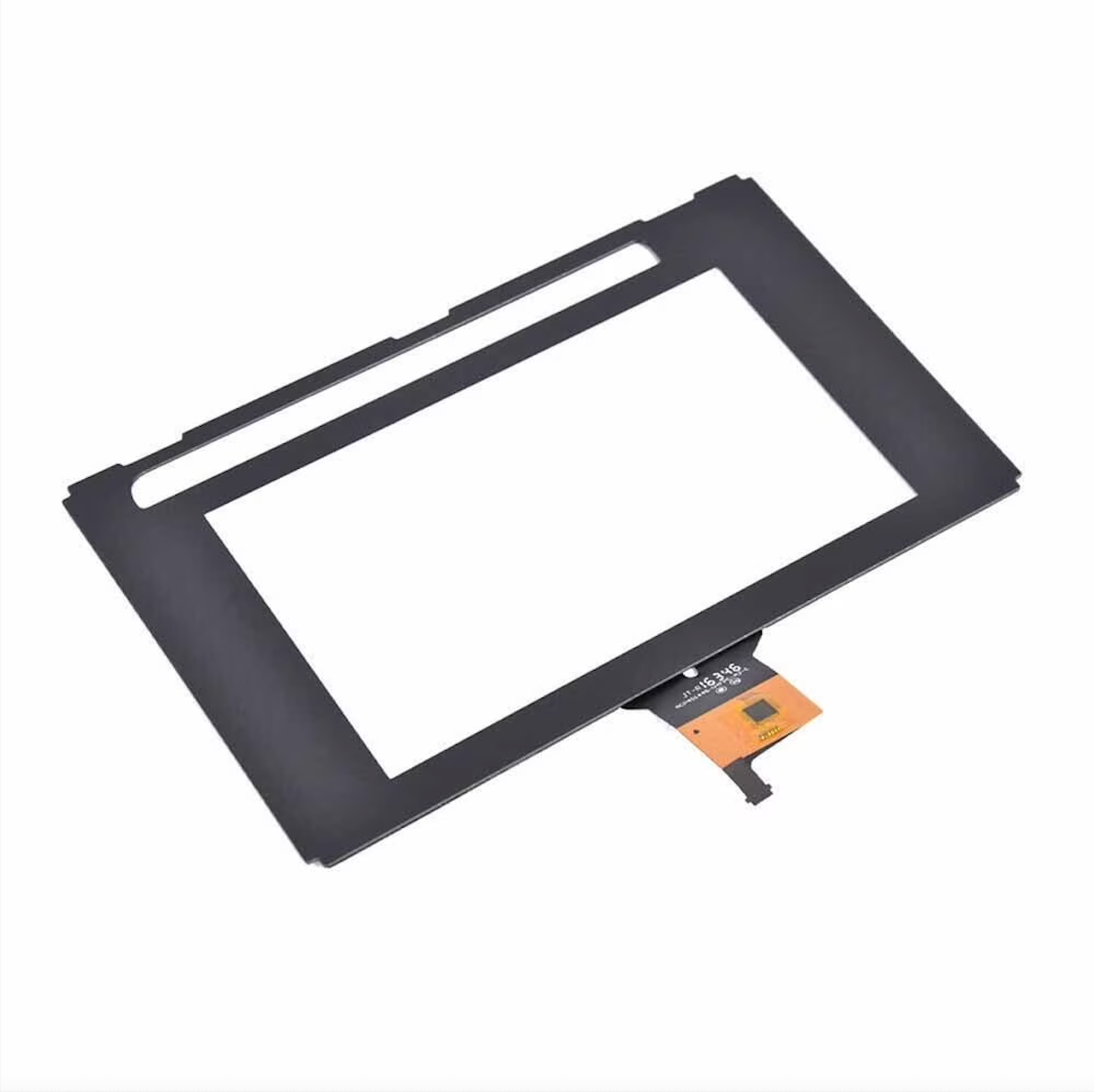

7" Touch Screen Digitizer Replacement for 2015–2016 Mazda CX-5 | KA5F-611J0A

Restore touchscreen control in your Mazda CX-5 without replacing the entire radio or infotainment display.

This Cuescreens 7" touch screen digitizer is designed for select 2015–2016 Mazda CX-5 factory radio information displays using the KA5F-611J0A style 10-pin touch panel. If your original touchscreen is cracked, scratched, faded, dented, shattered, or no longer responding to touch, this replacement digitizer allows you to replace the failed touch panel while keeping your existing LCD display and factory radio system.

Dealerships often recommend replacing the entire display or radio assembly when only the outer touch panel has failed. In many cases, the LCD and radio still work properly, and only the touchscreen digitizer needs to be replaced.

This part is the touchscreen glass/digitizer only. It does not include the LCD display.

Key Benefits

• Restores touchscreen response on compatible Mazda CX-5 factory radio displays
• Replaces cracked, scratched, faded, dented, or shattered touch glass
• Helps correct no-touch, dead-zone, or inconsistent touch response issues when caused by digitizer failure
• Designed for select 2015–2016 Mazda CX-5 7" radio information displays
• KA5F-611J0A style replacement touch panel
• 10-pin ribbon cable interface
• Factory-new replacement part
• Glass resistive touch screen construction
• No dealer programming required
• Keeps your existing LCD display and factory radio system
• Cost-effective alternative to replacing the full radio or display assembly
• Backed by Cuescreens support and warranty options
• Professional installation available through our nationwide installer network

Compatible Vehicles and Systems

Designed for select:

• 2015 Mazda CX-5 with compatible 7" factory radio information display
• 2016 Mazda CX-5 with compatible 7" factory radio information display

Compatible replacement part number:

• KA5F-611J0A

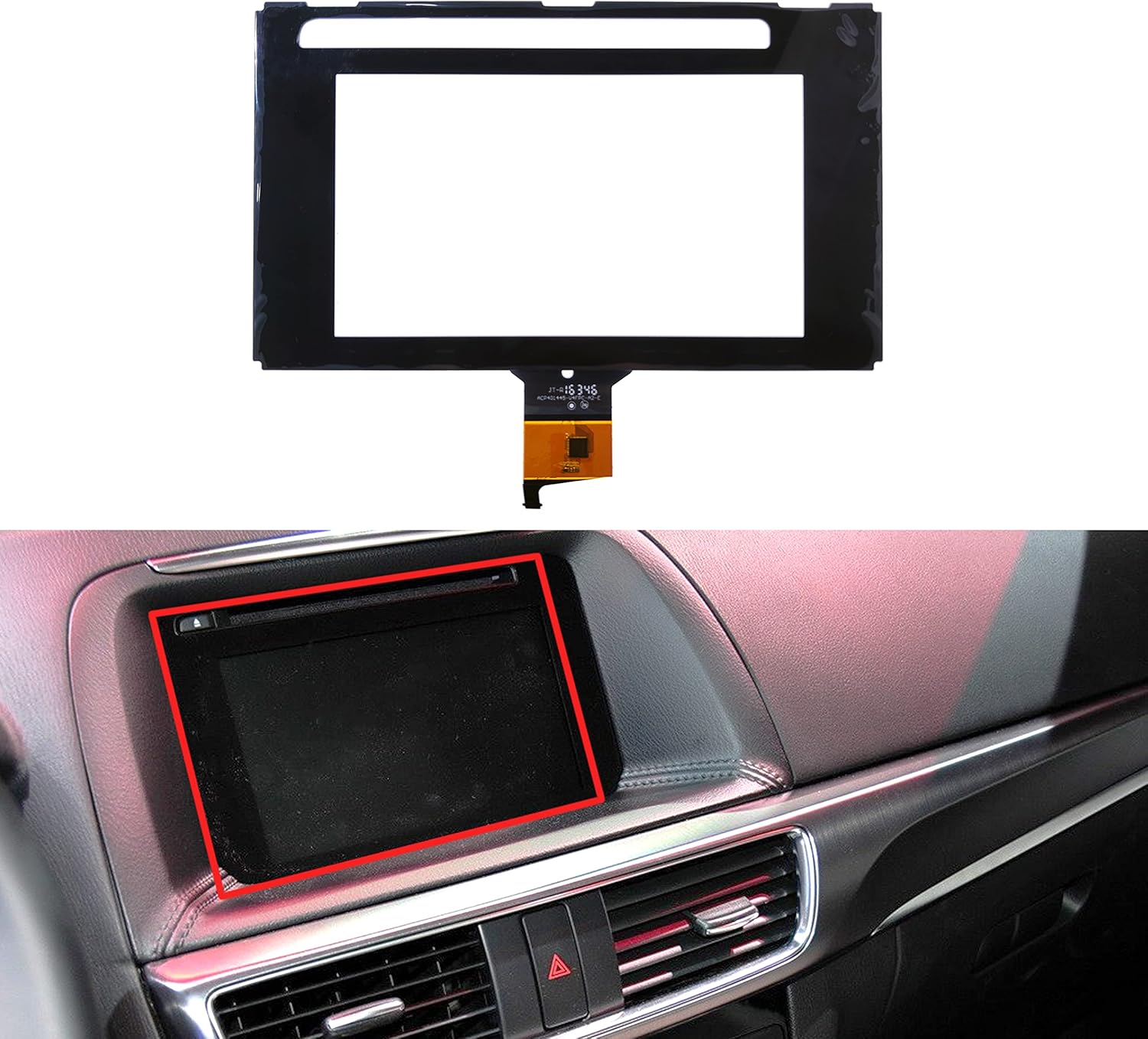

This part is intended for the 7" Mazda CX-5 display style that uses the matching 10-pin touchscreen ribbon connector.

Very Important Fitment Note

Please do not order by year alone.

Mazda used more than one 7" screen style across the 2015–2018 CX-5 range, and 2016 can be an overlap year depending on the radio/display installed in the vehicle. Before ordering, compare your original screen, part number, ribbon cable, and connector style to the product photos.

Order this listing only if your original unit matches the KA5F-611J0A style 7" touchscreen digitizer with the 10-pin connector.

If your 2016–2018 Mazda CX-5 uses the KAOH669GO / KA0H-style Mazda Connect digitizer, please order our separate 2016–2018 Mazda CX-5 7" touchscreen replacement instead.

If the connector does not match, this part will not install correctly.

What Issues Will This Product Fix?

This replacement touchscreen digitizer is designed to fix issues caused by a failed or damaged touch panel, including:

• No touch response
• Touchscreen dead spots
• Erratic or inaccurate touch response
• Cracked touch glass
• Shattered touch screen
• Scratched or worn touch surface
• Dented or physically damaged touch panel
• Faded or worn screen surface
• Touch layer failure while the LCD image still displays normally

What This Product Will Not Fix

This is a touchscreen digitizer only. It will not fix problems unrelated to the touch panel, including:

• Blank LCD display
• No image on the screen
• Lines, bleeding, or black spots inside the LCD
• Backlight failure
• Radio rebooting or software issues
• Bluetooth, Wi-Fi, audio, or CarPlay issues
• Backup camera signal problems
• Control knob or button issues
• Damage to the radio/head unit itself

If your screen image is missing, distorted, or damaged underneath the glass, you may need an LCD or complete display repair instead of only the digitizer.

Product Specifications

• Product Type: Touch screen digitizer / touch panel
• Vehicle Fitment: Select 2015–2016 Mazda CX-5
• Display Size: 7"
• Compatible Part Number: KA5F-611J0A
• Interface: 10-pin ribbon connector
• Touch Type: Resistive touch screen
• Main Material: Glass
• Thickness: Approximately 1.5mm
• Working Voltage: 5V
• Special Feature: Supports Can-Bus system compatibility where applicable
• LCD Included: No
• Programming Required: No

What’s Included

• 1 × 7" touch screen digitizer

LCD display, tools, and installation instructions are not included.

Installation Notes

Installation requires removal of the factory display assembly and careful handling of the touchscreen ribbon cable and connector. The ribbon cable, pins, and connector are delicate. Do not force the connector into place, and do not continue installation if your original screen or connector does not match this replacement.

No special programming is required after installation. This is a direct hardware replacement for compatible units.

Professional installation is recommended if you are not comfortable removing the radio/display assembly or separating the digitizer from the display. Cuescreens works with a nationwide installer network if you prefer to have the repair completed professionally.

Why Choose Cuescreens?

Cuescreens specializes in automotive touchscreen replacement solutions. We focus on helping customers repair the failed screen component instead of replacing the entire factory radio system.

• Automotive touchscreen replacement specialists
• Vehicle-specific fitment guidance
• High-quality replacement parts
• U.S.-based customer support
• Standard 2-year warranty with Lifetime Warranty upgrade option
• Nationwide installer network available
• Fast shipping and secure packaging
• Trusted by customers nationwide

Frequently Asked Questions

Does this include the LCD display?

No. This listing is for the touchscreen digitizer only. It does not include the LCD display underneath the touch glass.

Will this fix a cracked touchscreen?

Yes, if the LCD underneath still displays normally and the issue is limited to the outer touchscreen/digitizer.

Will this fix no touch response?

Yes, if the no-touch issue is caused by a failed digitizer. If the radio, software, or head unit is the problem, replacing the digitizer may not resolve the issue.

Does this require programming?

No. This replacement touch panel does not require dealer programming or software calibration.

How do I confirm this is the correct part?

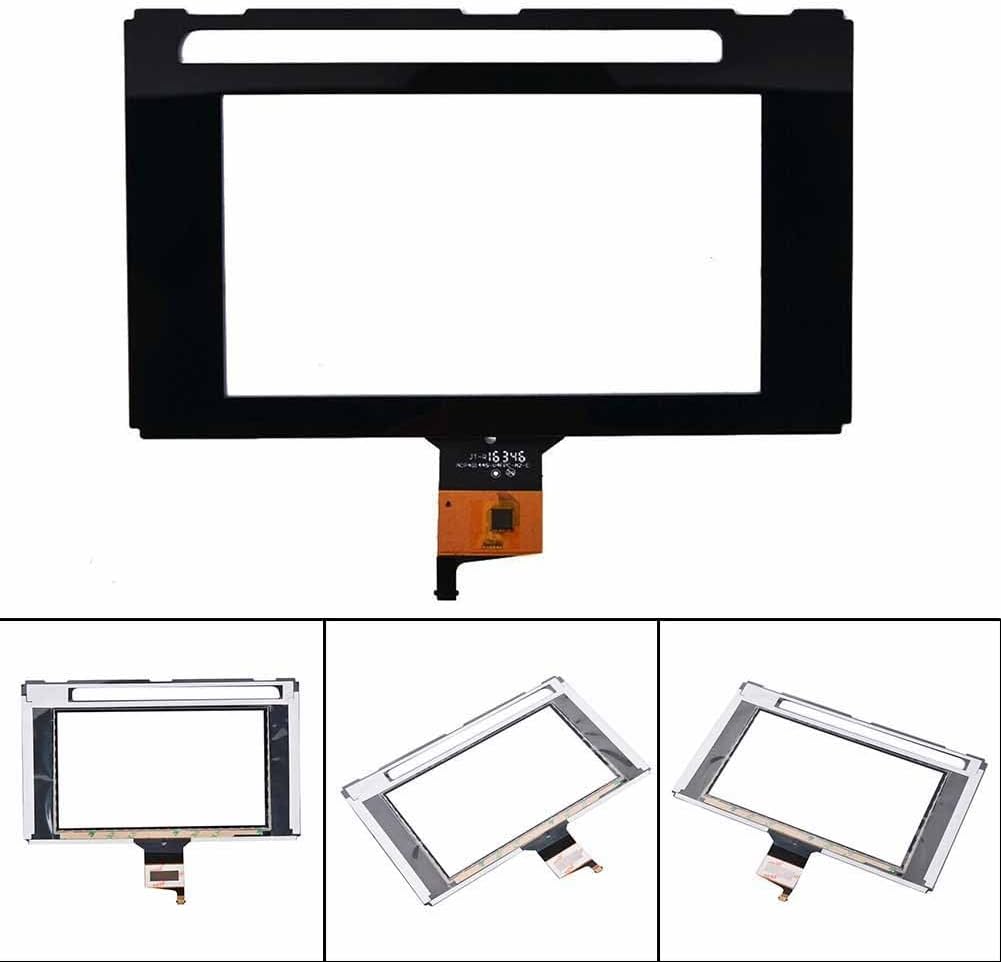

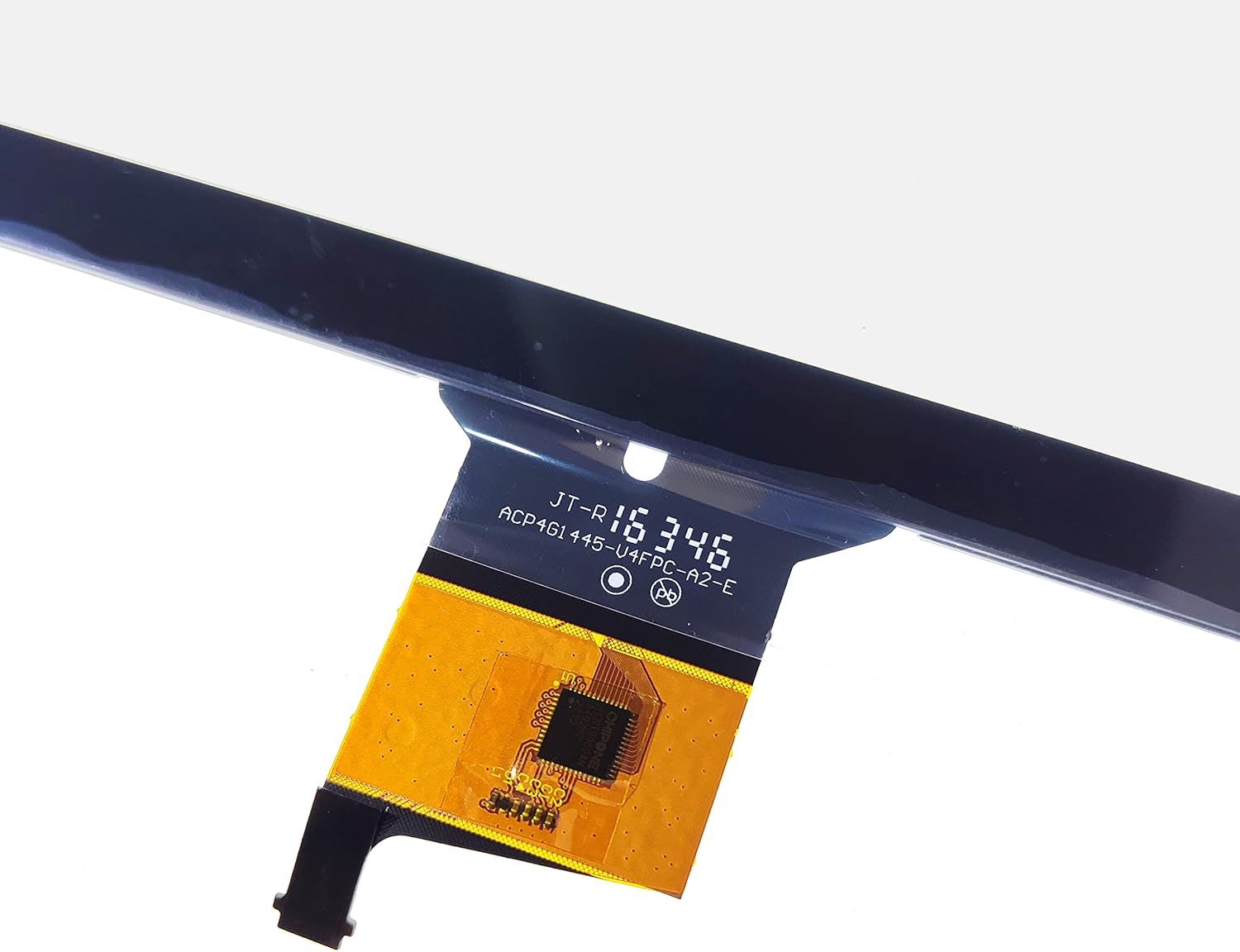

Match your original screen style, part number, ribbon cable, and connector to the product photos. This listing is for the KA5F-611J0A style 7" digitizer with a 10-pin connector.

I have a 2016 Mazda CX-5. Which listing should I order?

Please check your original screen before ordering. Some 2016 Mazda CX-5 vehicles may use this KA5F-611J0A style digitizer, while others may use the KAOH669GO / KA0H-style digitizer listed separately on our website. The connector and screen style must match.

Will this work for a 2017 or 2018 Mazda CX-5?

No, not unless your original screen specifically matches the KA5F-611J0A style connector and panel. Most 2017–2018 CX-5 customers should use the separate 2016–2018 KAOH669GO / KA0H-style listing instead.

Does Bose audio affect compatibility?

Bose audio is not the main fitment factor for this part. The screen size, original part number, ribbon cable, and connector style are the important items to verify.

Can I install this myself?

Many customers with electronics or trim removal experience can complete this type of repair, but the ribbon cable and display components are delicate. Professional installation is recommended if you are not comfortable working with small connectors and screen assemblies.
