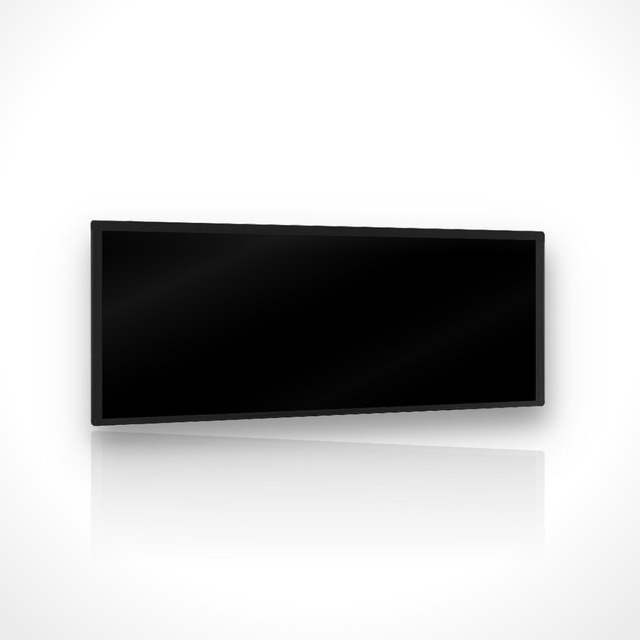

Tesla Model S / Model X 12.3" Instrument Cluster LCD Screen, LA123WF1(SL)(01)

Tesla Model S / Model X 12.3-Inch Instrument Cluster LCD Replacement

Restore the driver-side digital instrument cluster display in your Tesla Model S or Model X with this replacement 12.3-inch LCD screen. This LCD is for instrument clusters using panel number LA123WF1(SL)(01), also commonly listed as LA123WF1-SL01 or LA123WF1 SL01.

This is the LCD display only. It is designed to replace a failed, damaged, bubbling, dim, distorted, or blank instrument cluster screen while reusing your original Tesla cluster housing and electronics.

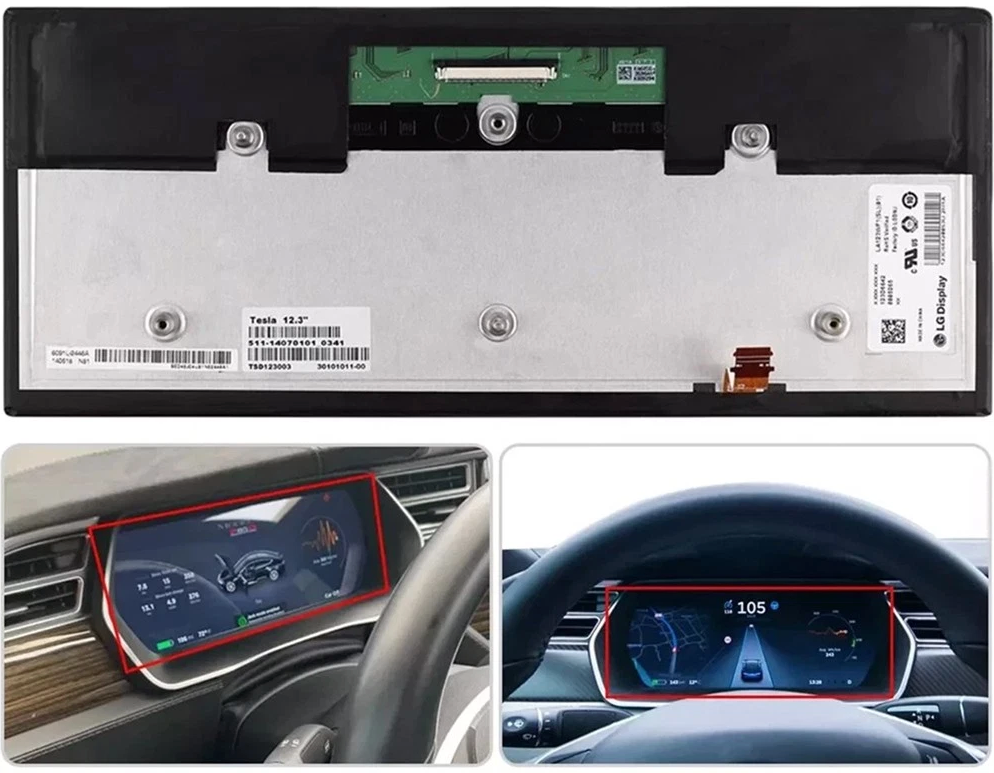

Important: This is not the 17-inch center touchscreen. This is the driver display located behind the steering wheel.

Important Fitment Note

Tesla used different instrument cluster versions across Model S and Model X production. For the most accurate fitment, confirm the part number printed on your original LCD before ordering. This screen is intended for clusters that use LA123WF1(SL)(01), LA123WF1-SL01, or LA123WF1 SL01.

Do not order by year alone. The original LCD panel number is the best way to confirm compatibility.

Vehicle Compatibility

Will Not Fit

• 17-inch Tesla center touchscreen
• Tesla Model 3 or Model Y

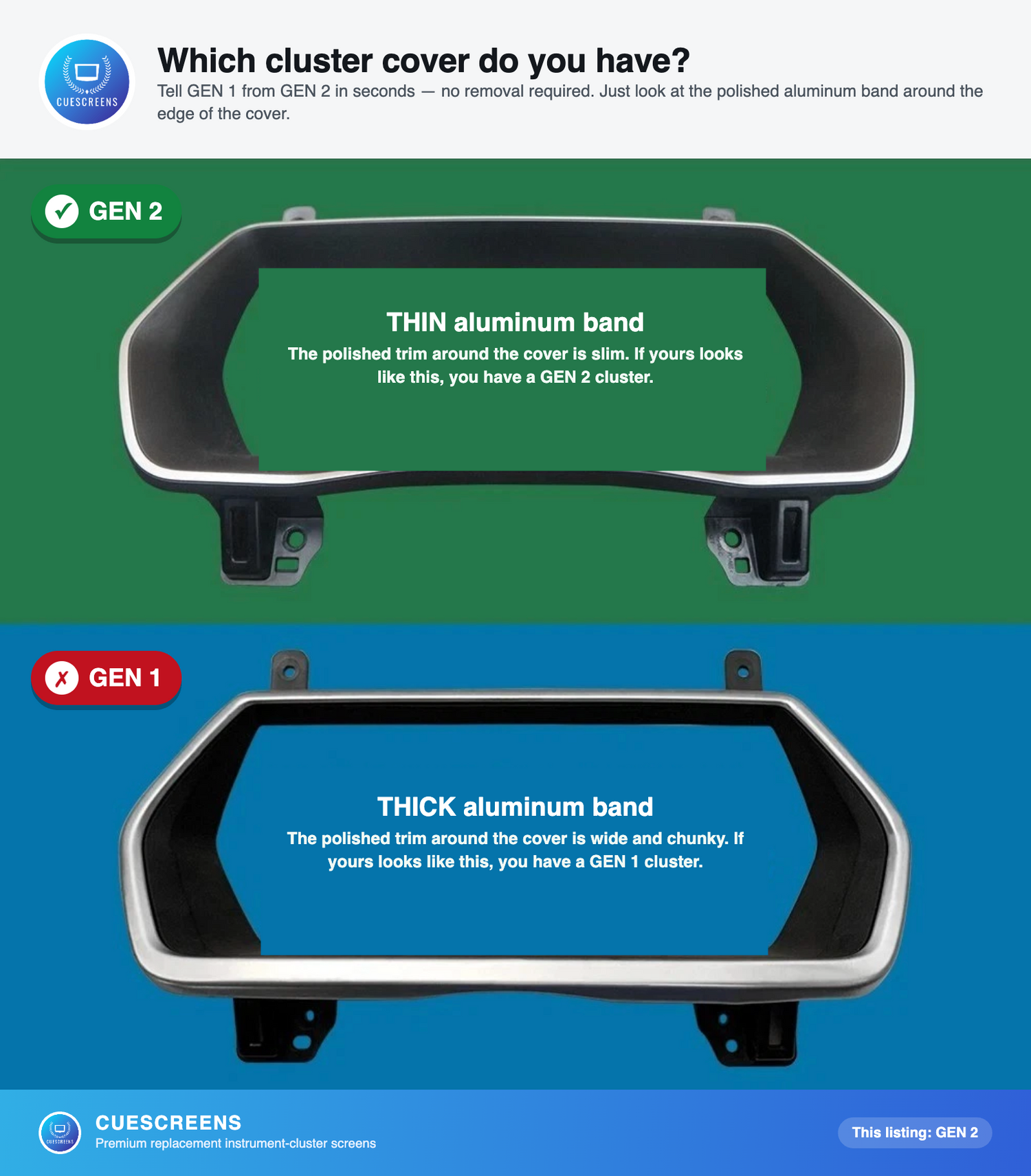

• 2012-early 2014 Model S Gen 1 clusters using the earlier display version
• Refreshed/Palladium 2021+ Model S or Model X interiors
• Instrument clusters that do not use LA123WF1(SL)(01), LA123WF1-SL01, or LA123WF1 SL01
• Failures caused by the cluster circuit board, processor board, wiring, power supply, software, or vehicle communication issue

Common Symptoms This LCD Can Help Fix

• Bubbling, leakage, or delamination on the instrument cluster screen
• Dim, faded, washed-out, or uneven display brightness
• Lines, blotches, dark areas, or LCD panel damage
• Blank display caused by LCD panel failure
• Physical damage to the driver-side instrument cluster display

Product Details

Product Type	Instrument Cluster LCD Display
Screen Size	12.3 inches

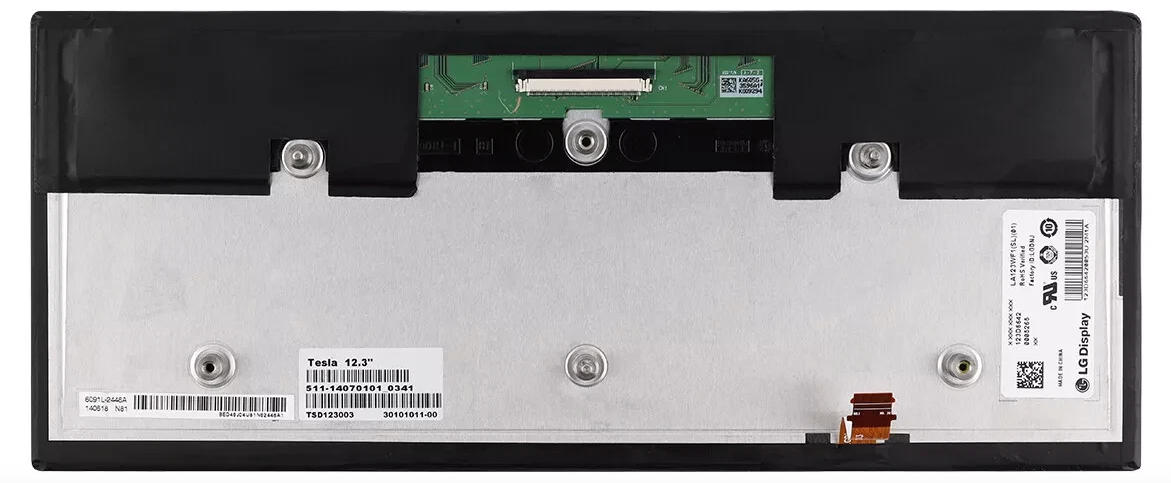

Panel Number	LA123WF1(SL)(01)
Interchange Numbers	LA123WF1-SL01, LA123WF1(SL)(01), LA123WF1 SL01
Display Type	LCD Display
Resolution	1920 x 720
Interface	LVDS, 60-pin
Approximate Panel Size	12.20 x 5.04 x 0.81 inches
Warranty	2 Year Warranty
Package Includes	1 LCD display only

Before Ordering

Please confirm your original LCD part number before purchasing. Tesla instrument cluster fitment can vary by production date and cluster hardware. If your original screen does not show LA123WF1(SL)(01), LA123WF1-SL01, or a directly matching number, do not order by year alone.

Installation Notes

• Professional installation is recommended.
• Disconnect vehicle power before removing the instrument cluster.
• Handle the LCD and ribbon cable connections carefully.
• Improper ribbon cable seating can cause no image, dim image, flickering, lines, or intermittent display issues.
• This part replaces the LCD panel only. It does not replace the cluster circuit board, processor board, housing, wiring, or software.

FAQ

Is this the center touchscreen?

No. This is the 12.3-inch driver-side digital instrument cluster LCD. It is not the large center infotainment touchscreen.

Does this fit every 2021 Model X?

No. It may fit early/pre-refresh 2021 Model X vehicles only if the original instrument cluster LCD is LA123WF1(SL)(01). It does not fit refreshed/Palladium 2021+ Model S or Model X interiors.

Does this fit Model 3 or Model Y?

No. This LCD is for compatible Tesla Model S and Model X digital instrument clusters only.

Do I need programming after replacing the LCD?

Replacing the same LCD panel type generally should not require vehicle programming. Replacing the entire cluster, circuit board, processor module, or changing cluster generations can require additional Tesla service procedures.

Will this fix a completely dead cluster?

It depends on the cause. If the LCD panel itself has failed, this can correct the display issue. If the cluster PCB, power supply, wiring, vehicle communication, or software is the problem, replacing the LCD alone will not fix it.

How do I confirm fitment?

The safest method is to remove the cluster and confirm the number printed on the original LCD panel. This listing is for clusters using LA123WF1(SL)(01), LA123WF1-SL01, or LA123WF1 SL01.

What is included?

This listing includes one replacement LCD display only. It does not include the full instrument cluster, housing, trim, circuit board, wiring, or installation tools.
