Mazda6 Touchscreen: 36 Pin or 50 Pin? How to Tell Which Version You Have

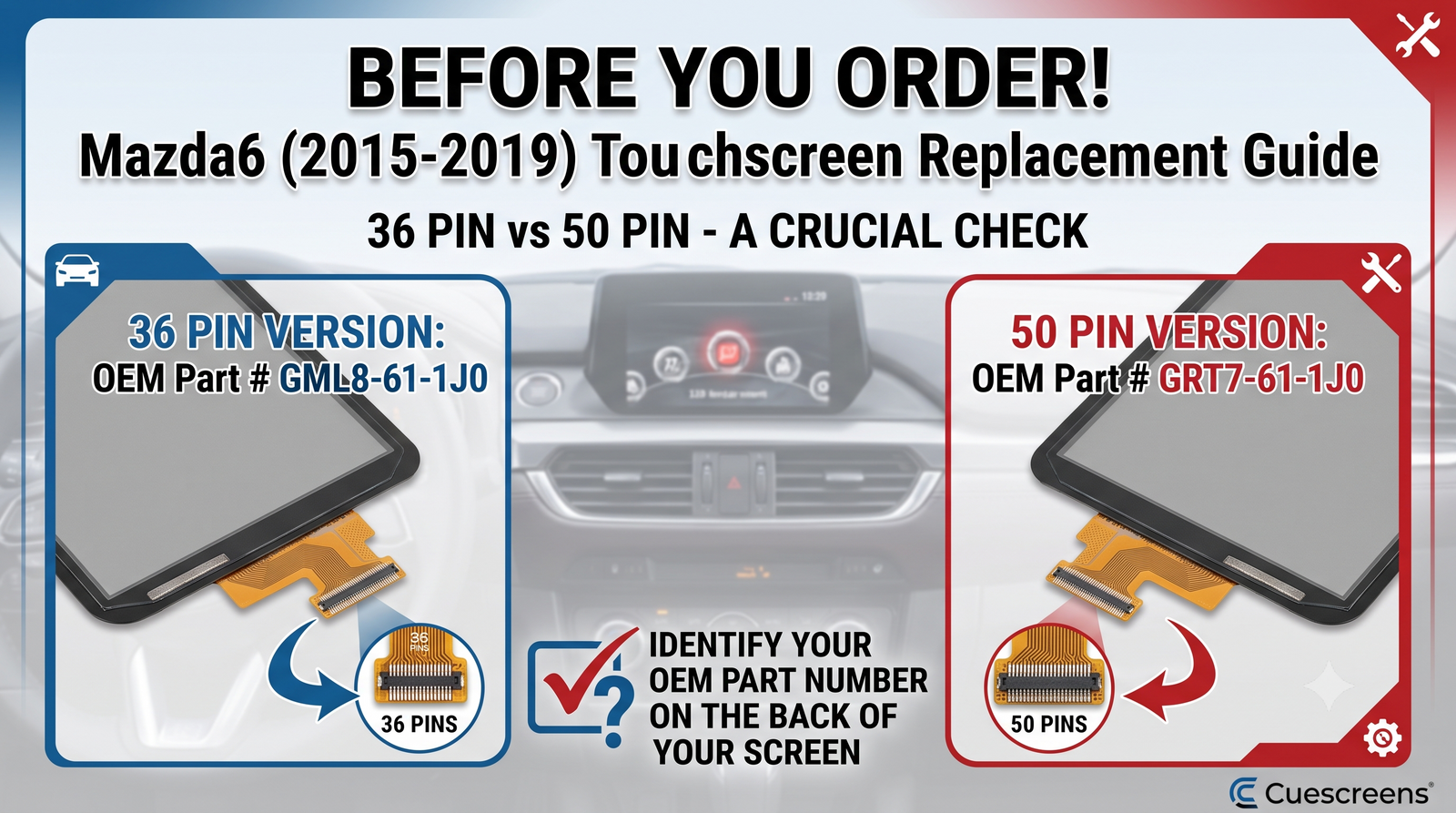

The Two Mazda6 Touchscreen Versions

The two versions are identified by their ribbon cable connector pin count and their OEM part number:

• 36 Pin Version: OEM part number GML8-61-1J0 (also written GML8611J0)
• 50 Pin Version: OEM part number GRT7-61-1J0 (also written GRT7611J0)

The pin count refers to the connector on the ribbon cable that links the touchscreen digitizer to the rest of the display assembly. A 36 pin digitizer will not connect to a 50 pin assembly, and a 50 pin digitizer will not connect to a 36 pin assembly. There is no workaround for this. The correct version has to match your original screen.

How to Identify Which Version You Have

The most reliable way to confirm your version is to check the original part number and ribbon cable directly on your vehicle:

1. Remove the display assembly from the dashboard so you can access the back of the original touchscreen.
2. Locate the OEM part number printed on the original screen or display housing. If it reads GML8-61-1J0 or GML8611J0, you have the 36 pin version. If it reads GRT7-61-1J0 or GRT7611J0, you have the 50 pin version.
3. Compare the ribbon cable connector on your original screen to confirm it matches the part number you found. The connector, pin count, and layout should match before you order a replacement.

If you're not able to confidently identify the part number or you're unsure whether what you're seeing matches, the safest move is to take a clear photo of the back of your original screen and its ribbon cable and confirm before ordering. Guessing on pin count is the single most common cause of a wrong-part order on this repair.

What If Your Screen Shows a Different Part Number?

Some Mazda OEM listings show the part number GRT7-61-1J0C as a replacement for earlier GML8611J0 and GRT7611J0 display families. If your part number doesn't match either listed version exactly, this is worth double-checking against your ribbon cable and connector before assuming compatibility either way.

Which Mazda6 Years and Trims Does This Affect?

Both the 36 pin and 50 pin versions can appear across the 2015, 2016, 2017, 2018, and 2019 Mazda6, including Sport, Touring, Grand Touring, Grand Touring Reserve, Signature, GS, and GS-L trims. Model year and trim alone won't tell you which version you have. The part number and ribbon cable on your specific vehicle are what determine the correct match.

Does This Affect the LCD Too, or Just the Touchscreen?

The 36 pin and 50 pin distinction applies specifically to the touchscreen digitizer glass, the front touch-sensitive layer. It does not include the LCD, the radio unit, or the full display assembly. If your LCD still displays an image normally and the problem is cracked glass, unresponsive touch, ghost touch, or dead touch zones, the digitizer is typically the part that needs replacing, and matching the correct pin version is what determines fitment.

If your screen is completely black, has no backlight, or shows no image at all, that points to a different issue with the LCD or display assembly rather than the touchscreen layer.

Why Getting This Right Matters

A correctly matched 36 pin or 50 pin replacement digitizer lets you repair just the failed touch layer instead of replacing the entire Mazda6 display assembly. Getting the pin version wrong means the part won't seat or connect properly, which costs you time and shipping either way. Checking your original part number and ribbon cable before ordering is the only step that reliably prevents this.

Frequently Asked Questions

Cuescreens offers the Mazda6 touchscreen digitizer replacement for both the 36 pin GML8611J0 version and the 50 pin GRT7611J0 version, covering 2015-2019 Mazda6 models. Confirm your part number and ribbon cable before ordering to ensure correct fitment.
