Why Cadillac XTS Screens Fail Faster Than Other Models

If you own a Cadillac XTS and your screen is bubbling, cracking, or acting on its own — you're not alone.

In fact, the XTS is one of the most failure-prone vehicles when it comes to infotainment screens. And there's a reason why.

This isn't just bad luck. It's a design issue.

The Cadillac XTS and the CUE System

The Cadillac XTS (2013–2019) came equipped with Cadillac's CUE (Cadillac User Experience) infotainment system — a fully touch-based interface designed to replace physical buttons.

While it looked modern, it introduced a major weakness: a fragile touchscreen design that fails faster than most competitors.

The Real Reason XTS Screens Fail Faster

The biggest issue comes down to how the screen is built.

Cadillac CUE screens use a layered structure that includes:

Glass outer layer
Touch-sensitive digitizer
LCD display underneath
A gel-based adhesive layer bonding everything together

That gel layer is the problem.

Over time — especially with heat exposure — it begins to break down, causing the layers to separate. This process is called delamination.

These bubbling, cracking, and separation issues were significant enough that GM faced class-action litigation over them (more on that below).

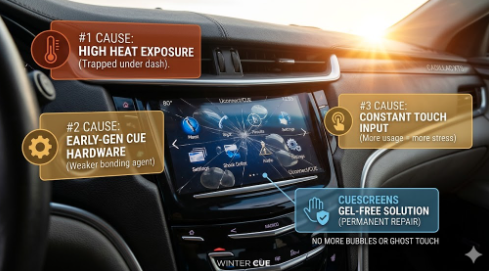

Why the XTS Is Hit Harder Than Other Vehicles

While other vehicles use similar designs, the XTS tends to fail faster for a few key reasons:

1. High Heat Exposure

The XTS has a large, deeply integrated dashboard with limited airflow behind the screen. This traps heat — accelerating adhesive breakdown.

Interior temperatures can exceed 120°F, which rapidly degrades the bonding layer.

2. Early-Generation CUE Hardware

The XTS was one of the first vehicles to widely adopt the CUE system. Early versions had:

Less durable digitizers
Weaker bonding materials
More software instability

That combination leads to faster failure compared to newer GM systems.

3. Constant Touch Input

Unlike vehicles with physical buttons, nearly every function in the XTS runs through the touchscreen:

Climate controls
Radio
Navigation
Vehicle settings

More usage = more stress on an already fragile screen.

4. Known Manufacturing Defect

This isn't speculation — it's documented.

GM faced a class-action lawsuit (filed in 2019 in the U.S. District Court for New Jersey) alleging that Cadillac CUE screens were defectively designed and prone to delamination. That suit specifically covered 2013-2017 model-year XTS, ATS, and SRX, along with 2014-2017 CTS, ELR, and Escalade — the years GM's own technical service bulletins (issued December 2014 and August 2017) acknowledged cracked, bubbled, or delaminated CUE screens.

If you own a 2018 or 2019 XTS, your model year falls outside that specific litigation, though owners report the same gel-based design and the same failure pattern continuing in these later years.

In other words, the failure isn't random — it's built into the system.

Common Cadillac XTS Screen Failure Symptoms

If your XTS screen is starting to fail, you'll usually notice:

Bubbling or "spiderweb" cracks under the glass
Ghost touch (random inputs)
Unresponsive areas of the screen
Frozen or lagging interface
Black screen (while backup camera still works)

These symptoms are widely reported among XTS owners and often worsen over time.

Why "Waiting It Out" Doesn't Work

Many XTS owners try to ignore early signs like small bubbles.

That's a mistake.

Once delamination starts, it spreads. The adhesive continues to fail, and the screen becomes less responsive until it's completely unusable.

This is exactly what we break down in The Wait and See Trap: Why Small Bubbles Lead to Total Failure.

Dealer Fix vs Reality

When XTS screens fail, dealerships typically recommend replacing the entire infotainment unit.

Typical cost:

$1,500 – $3,000+

But here's the truth:

The failure is usually just the digitizer layer — not the entire system.

That means you're paying for a full replacement when only one component is bad.

A Smarter Solution

Instead of replacing the entire unit, many owners are switching to upgraded replacement touchscreens.

Modern solutions eliminate the root problem by removing the failure-prone gel layer entirely.

This results in:

No bubbling or delamination
Restored touch accuracy
Long-term reliability
No need for VIN programming

Final Thought

The Cadillac XTS doesn't just have screen issues — it has one of the most failure-prone infotainment systems of its era.

And once it starts failing, it doesn't stop.

If you're seeing early signs, the best move is to act early — before a small issue turns into a complete system failure.
